Products - Brass Inserts

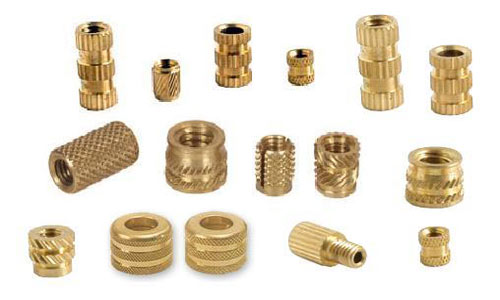

brass inserts

Threads as per International Go & Not Go Standards.
Deep Groove for maximum Pull Out Resistance.
Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the inserts.

Knurling Available :
Diamond
Straight
Unidirectional
Both blind and through inserts are available with no minimum Qty.

Typical Application :
Instrumentation , Telecommunications, and other Plastic Cases Assembly.

Material :
Free Cutting Brass IS 319 Type (I) or
Free Cutting Brass As Per BS 249 Type (I) or
High Grade Free Cutting Brass
Any Special Brass Material Composition As Per Customers Requirement.

Threads :
ISO Metric (MM Threads)
BA Threads
BSW Threads (inches)
UNC & UNF Threads
Any threads as per custom design..

Length / Size :
Begins from M2 or equivalent threads and upto any size as per Custom Designs or requirements

Finish And Coating :
Natural, Nickle Plated, Tin Plated or any coating as per customer specification.
Any kind of special inserts, Screw can be developed and supplied exactly as per customer specifications.
